2 Product standards
GB/T 14049-2008

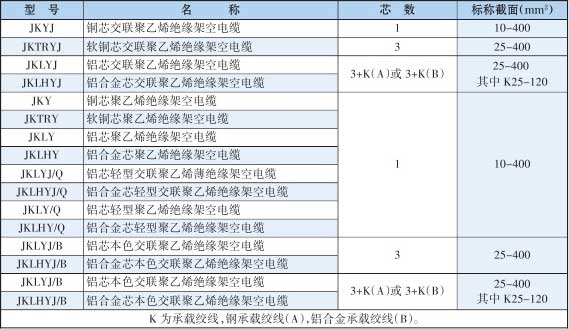

3 Product scope
This product is fit for ac rated voltage U (Um) (12) kV overhead power line with copper, aluminium, aluminium alloy core crosslinked polyethylene (described.properties) and high density polyethylene (HDPE) insulating aerial cable.
4 Products use requirement
The cable, used in aerial fixed the soft copper products used for transformer down lead;Cable erection of cables and trees should keep a certain distance, runtime allows cable and trees frequent contact;However, for the light of aerial cable, cable only allows contact with the short trees.

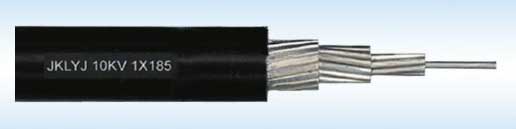

5 The product entity diagram
6 Product technical performance form

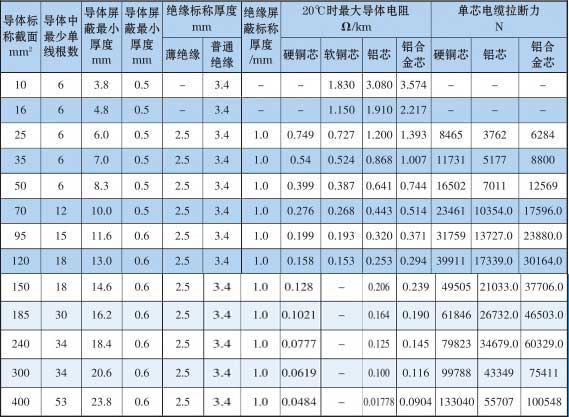

6.1 Cable technology performance tables

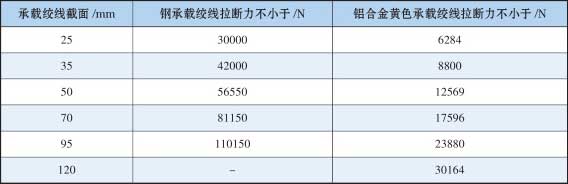

6.2 Bearing the winding performance table

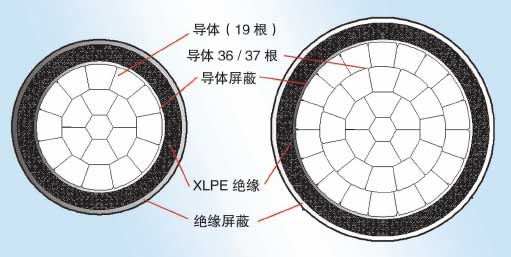

6.3 Typical structure section diagram
