1.1 Rated voltage
This series of the rated voltage of the cable is expressed as U0 / U (Um) form, including:
"U0" designed for the cable conductor to ground or between metal shielding rated power-frequency voltage up to;
"U" for cable design with rated power-frequency voltage between conductors;
"Um" for the equipment can withstand a maximum of "highest system voltage.
The series cable is mainly is divided into the following three categories:
1.2 Rated voltage of 1 kV and 3 kV extruded power cable and the U0 / U (Um), respectively (1.2 kV) and including 0.6/1 kV 1.8/3 kV (3.6 kV) which mainly U0 / U (Um) = 0.6/1 kV (1.2 kV) is the most commonly used;
1.3 Rated voltage of 6 kV to 30 kV electric power cable, extruded and U0 / U (Um) correspond to the 3.6/6 kV (7.2 kV), 6/6 kV (7.2 kV), 6/10 kV (12 kV), 8.7/10 kV (12 kV), 8.7/15 kV (17.5 kV), 12/20 kV (24 kV), 18/30 kV (36 kV) seven levels, of which U0 / U (Um) = 8.7/15 kV (17.5 kV) is the most commonly used;
1.4 Rated voltage of 35 kV electric power cable, extruded and U0 / U (Um) respectively 21/35 kV (40.5 kV) and 26/35 kV (40.5 kV), of which U0 / U (Um) = 26/35 kV (40.5 kV) is most commonly used.
2 Product standards
2.1 GB/T 12706.1-2008 (IEC 60502-1: 2004)，Rated voltage of 1 kv and 3 kv extruded power cable;
2.2 GB/T 12706.2-2008 (IEC 60502-2: 2005)，The rated voltage of 6 kv to 30 kv extruded power cable;
2.3 GB/T 12706.3-2008 (IEC 60502-2: 2005)，35 kv rated voltage for extruded power
3 Product scope
This product apply to dry rated voltage from 1 kv to 35 kv fixed installation of industrial equipment in power distribution lines or extruded power cable, including 1 kv and 3 kv type flame retardant, low smoke, zero halogen cables.
4 The structure of the product entity diagram

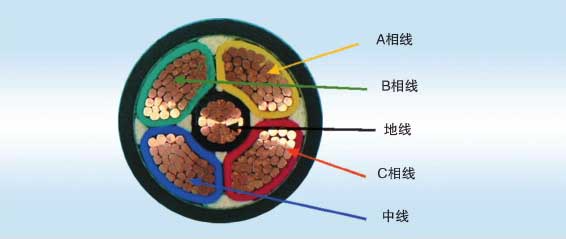

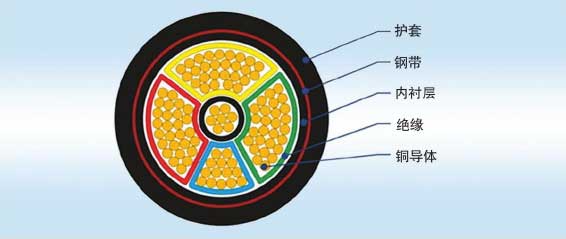

4.1 0.6/1 kV (1.2 kV) type commonly used five core (3) plus two core extruded power cable structure diagram

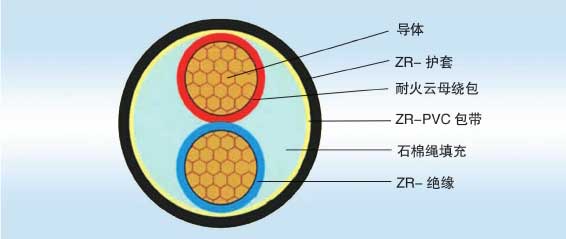

4.2 0.6/1 kV (1.2 kV) two core (antiflaming fire-resistant type) be extruded power cable structure diagram
4.3 0.6/1 kV (1.2 kV) five core (four plus a core) be extruded power cable entity thumbnails
4.4 0.6/1 kV (1.2 kV) quad extruded power cable the entity thumbnails

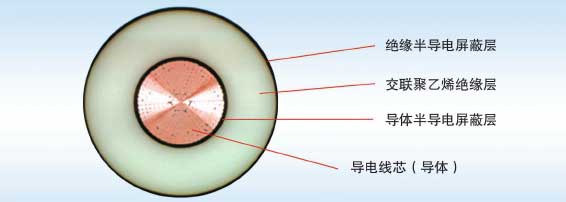

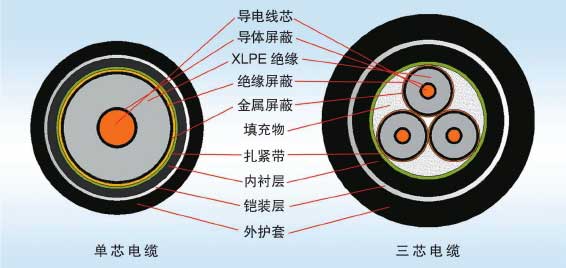

4.5 6 to 35 kv extruded power cable structure diagram
4.6 6 to 35 kv extruded crosslinking of PVC insulated wire cutting figure core entities

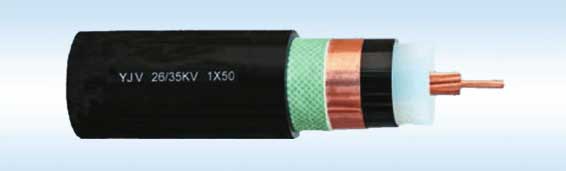

4.7 6 to 35 kv extruded crosslinked xlpe power cable the entity graph
5 The product code and its model

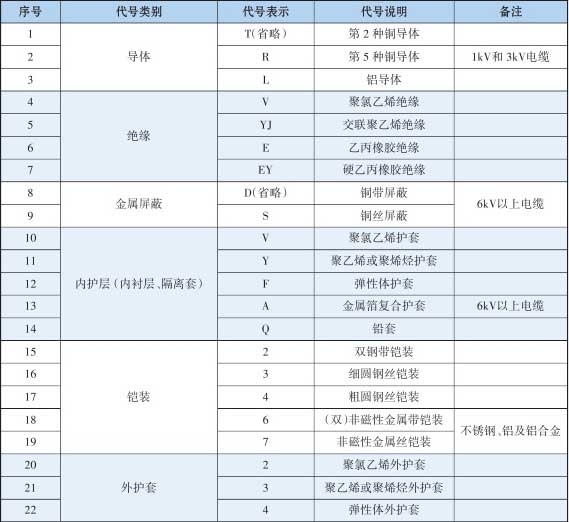

5.1 The product code
5.2 Product model of order

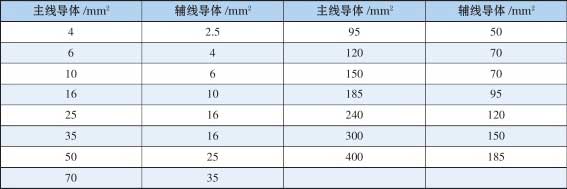

6 Core product line (lines) with neutral conductor line and the protection of line (subordinate line) nominal conductor cross section

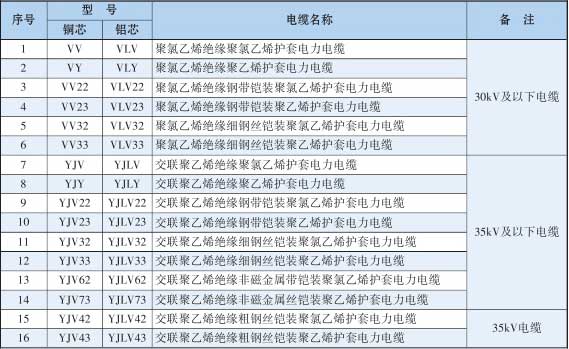

7 Product changyong commonly used model table
4.2 0.6/1 kV (1.2 kV) two core (antiflaming fire-resistant type) be extruded power cable structure diagram
4.3 0.6/1 kV (1.2 kV) five core (four plus a core) be extruded power cable entity thumbnails
4.4 0.6/1 kV (1.2 kV) quad extruded power cable the entity thumbnails
4.5 6 to 35 kv extruded power cable structure diagram
4.6 6 to 35 kv extruded crosslinking of PVC insulated wire cutting figure core entities
4.7 6 to 35 kv extruded crosslinked xlpe power cable the entity graph
5 The product code and its model
5.1 The product code
5.2 Product model of order
6 Core product line (lines) with neutral conductor line and the protection of line (subordinate line) nominal conductor cross section
7 Product changyong commonly used model table
8 The commonly used specifications of products technical performance tables

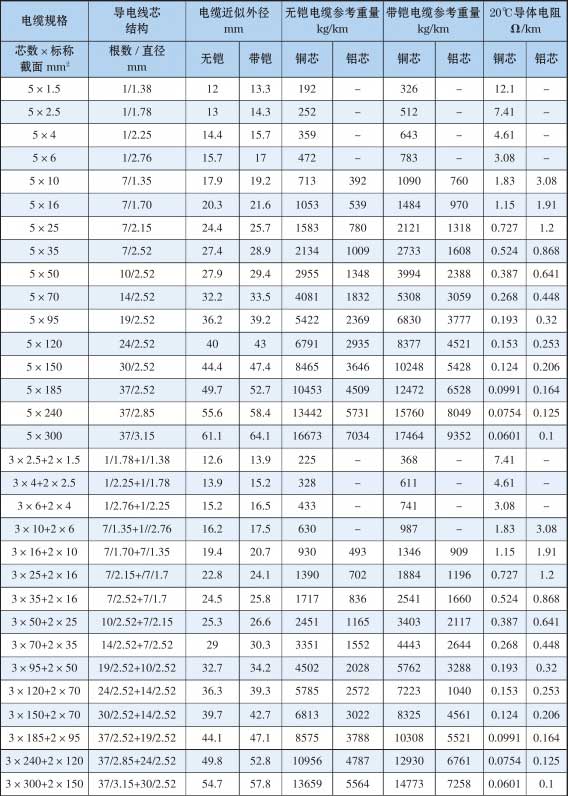

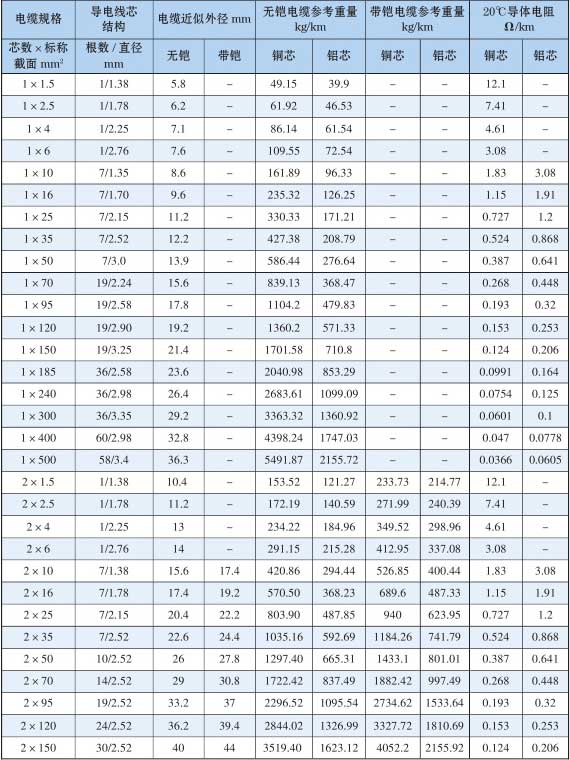

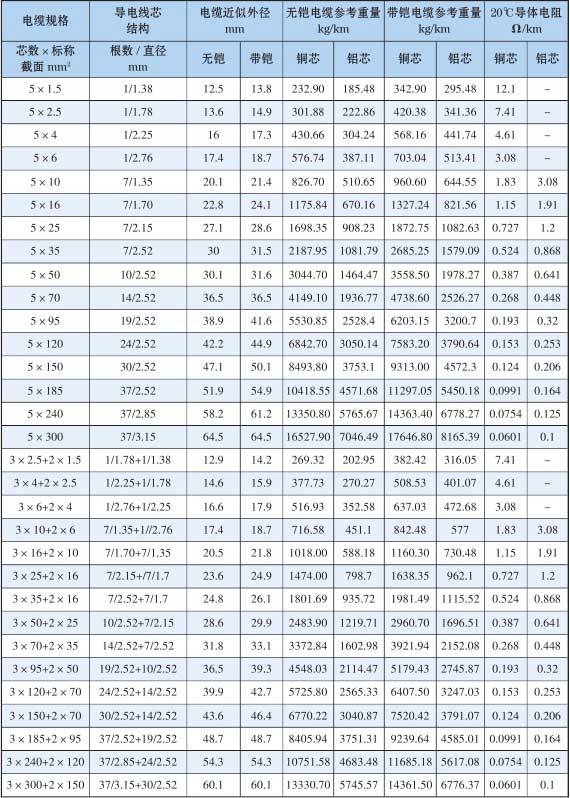

8.1 V. v. / VV22 (VLV/VLV22) 0.6/1 kv extruded power cable specification table

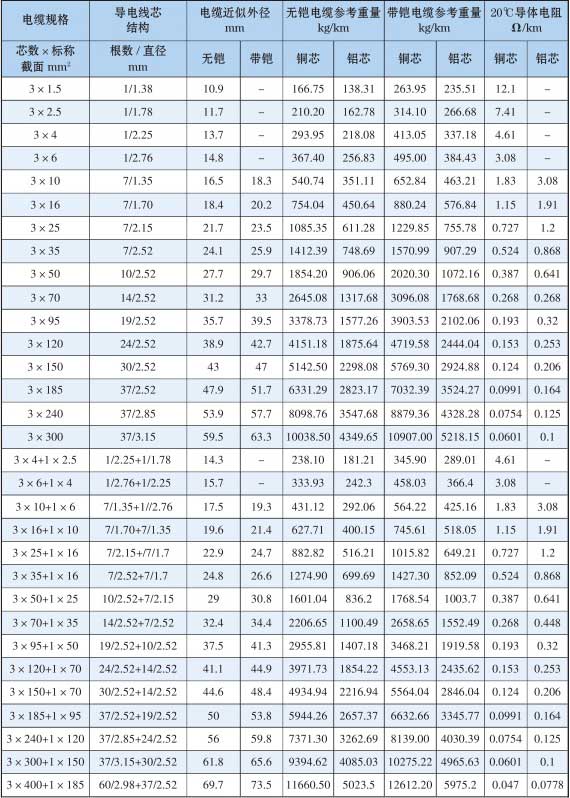

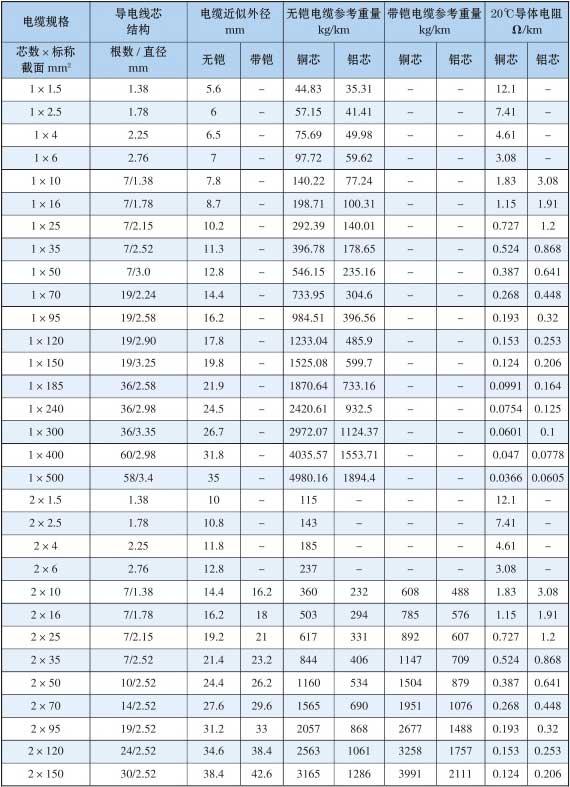

8.2 YJV/YJV22 (YJLV/YJLV22) 0.6/1 kv extruded power cable specification table
8.3 YJV/YJV22型8.7/15kV挤包电力电缆规格性能表

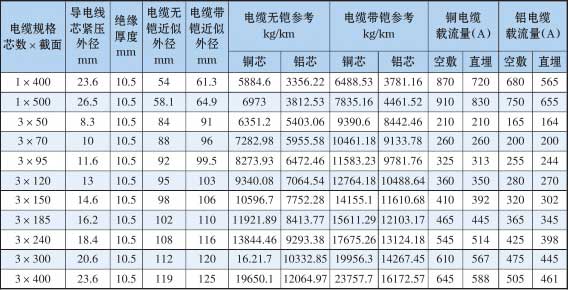

8.4 YJV/YJV22 (YJLV/YJLV22) 26/35 kv extruded power cable specification table
